Sol-Ark 15K-2P + (2) Discover Helios 16kWh Batteries | 32kWh Whole-Home Backup Power Bundle
Sol-Ark 15K-2P + (2) Discover Helios 16kWh Batteries | 32kWh Whole-Home Backup Power Bundle
Couldn't load pickup availability
Share
Sol-Ark 15K-2P + (2) Discover Helios 16kWh Batteries | 32kWh Whole-Home Backup Power Bundle
Sol-Ark 15K-2P 32kWh bundle combines advanced hybrid solar inverter technology with premium lithium battery storage. Whether you're protecting against grid outages, reducing electricity costs through solar integration, or transitioning to complete off-grid operation, this scalable energy storage system delivers professional-grade performance with residential ease of installation.
- 32kWh Usable Capacity
- Hybrid Grid-Tied and Off-Grid Operation
- Expandable Battery Architecture
About the Product
The Sol-Ark 15K-2P 32kWh whole-home backup power bundle integrates a 15kW continuous output hybrid solar inverter with two Discover Helios 16kWh LiFePO4 battery modules. Given the capacity, this bundle supports major appliances including HVAC systems, well pumps, electric ranges, and EV chargers during grid outages.
Built with intelligent power management, the Sol-Ark 15K-2P features three independent MPP trackers, optimizing energy harvest from complex roof layouts and partial shading conditions. The hybrid architecture seamlessly transitions between grid-tied, off-grid, and backup modes with just 5ms transfer time, while advanced load management prioritizes critical circuits during extended outages. The inverter handles up to 19.2kW of AC-coupled solar input, providing exceptional flexibility for existing solar installations.
The two Discover Helios lithium iron phosphate batteries provide 32kWh of usable energy storage. Each 16kWh module features an advanced 4th generation battery management system monitoring cell voltage, temperature, and state of charge in real-time.
Installation flexibility extends to both indoor and outdoor mounting with IP65-rated weatherproof enclosures on both inverter and batteries, protecting components from dust, moisture, and temperature extremes. Built-in self-heating technology ensures the Discover Helios LiFePO4 batteries operate reliably even in freezing conditions down to -13°F. CAN bus communication provides seamless inverter-battery integration, while Wi-Fi and Ethernet connectivity enable remote monitoring through mobile apps and web interfaces.
What’s Included in the Sol-Ark-2P 32kWh Whole Backup Power Bundle?
The Sol-Ark-2P 32kWh Whole Backup Power Bundle includes the following components:

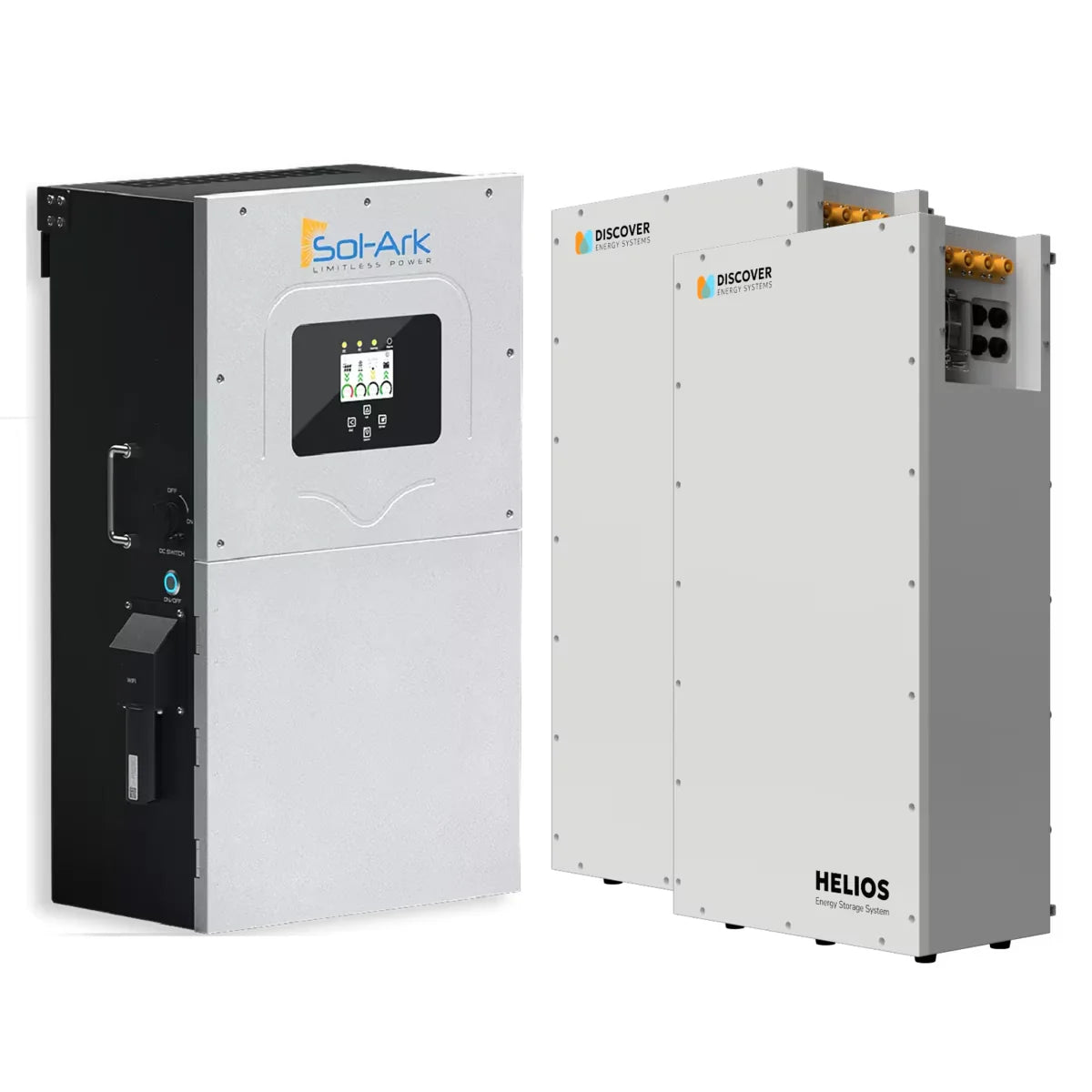

- Sol-Ark 15K-2P-N Hybrid Inverter (1 pc.)
- Discover Helios 52-48-16000 ESS Battery Modules (2 pc.)
- Sol-Ark 15K Conduit Box (950-0067) (1 pc.)
- Generic Conduit Box (950-0077) (1 pc.)
- HELIOS ESS Battery to Inverter Cables (1 pc.)
- HELIOS ESS Parallel Battery to Battery Cables (1 pc.)
Specifications
Sol-Ark 15K-2P Inverter
|
Inverter Type |
Hybrid (Grid-Tie/Off-Grid/Backup) |
|
AC Output Power |
15,000W continuous |
|
Phases |
Split-phase |
|
Efficiency |
97.5% peak / 96.5% CEC weighted |
|
DC Input Voltage |
150-500V MPPT range / 125V startup |
|
MPP Trackers |
3 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
120/240V, 120/208V, 220V |
|
Battery Support |
48V lithium (43-63V operating range) / 275A charge/discharge |
|
Protections |
UL 1741 SB/SA, arc-fault detection, rapid shutdown, ground fault monitoring, Type II surge protection |
|
Operating Conditions |
-13°F to 131°F (-25°C to 55°C) |
|
Warranty |
10 years (manufacturer standard) |
Download full inverter specifications here.
Discover Helios 16 kWh Battery
|
Battery Type |
Lithium Iron Phosphate (LiFePO4) |
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
314Ah |
|
Energy |
16.08kWh |
|
Cycle Life |
6,000+ cycles (93 MWh lifetime throughput) |
|
Operating Voltage |
43.2V - 56.8V |
|
Communication Interfaces |
CAN bus (closed-loop with Sol-Ark) |
|
Nominal Charging Current |
200A continuous |
|
Nominal Discharging Current |
200A continuous |
|
Max. Discharging Current |
300A RMS (15 seconds peak) |
|
Environment |
Indoor, Outdoor (IP65 weatherproof) |
|
Charging Temperature |
39.2°F to 131°F (self-heating enabled) |
|
Discharging Temperature |
-13°F to 131°F |
|
Storage Temperature |
-4°F to 131°F (one month) |
|
Altitude |
Maximum 2,000m (6,561 ft) |
|
IP Rating |
IP65 |
|
Dimensions |
35.43 x 18.31 x 10.7 inches (with wall-mount bracket) |
|
Weight |
299.83 lbs |
|
Installation |
Wall mount (included bracket) |
Download full battery specifications here.
